Gas Hob Installation Kit (10mm)
🔥 Gas Hob Installation Kit (10mm)
This complete gas fitting kit is designed to help you connect your new gas hob or cooktop safely and easily. It includes all the essential compression and elbow fittings, plus fibre washers for a secure, leak-free installation. The only item you'll need separately is 10mm copper pipe from your local hardware store.
- 🧩 1 x 1/2" Male to 1/2" Male Elbow
- 🧩 1 x 1/2" Female to 1/2" Male Elbow
- 🧩 1 x 1/2" Female x 10mm Compression Fitting
- 🧩 1 x 1/2" Male x 10mm Compression Fitting
- 🧩 1 x 10mm Mini Ball Valve (Straight)
- 🧩 4 x Green Fibre Washers
📦 Component Details
🔩 1/2" Male x 1/2" Male Elbow
- Size: 1/2" BSP Male x 1/2" Male
- Dimensions: 45 x 33mm (1.77" x 1.3")
- 90° angle – ideal for tight installations
- Material: Durable metal
- Sealing required: PTFE tape, liquid or paste (not included)

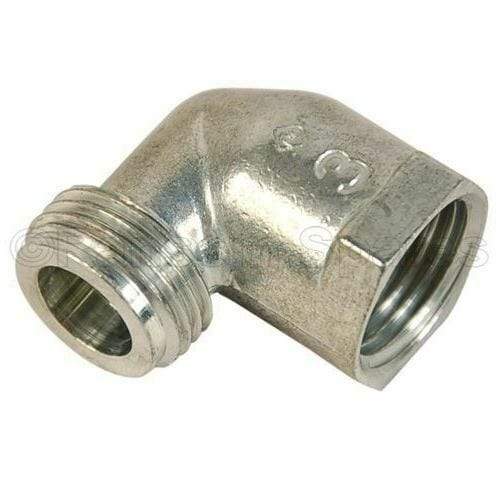

🔩 1/2" Female x 1/2" Male Elbow
- Size: 1/2" BSP Female x 1/2" BSP Male
- Dimensions: 45 x 33mm (1.77" x 1.3")
- 90° elbow – perfect for connecting pipes at an angle
- Material: Durable metal

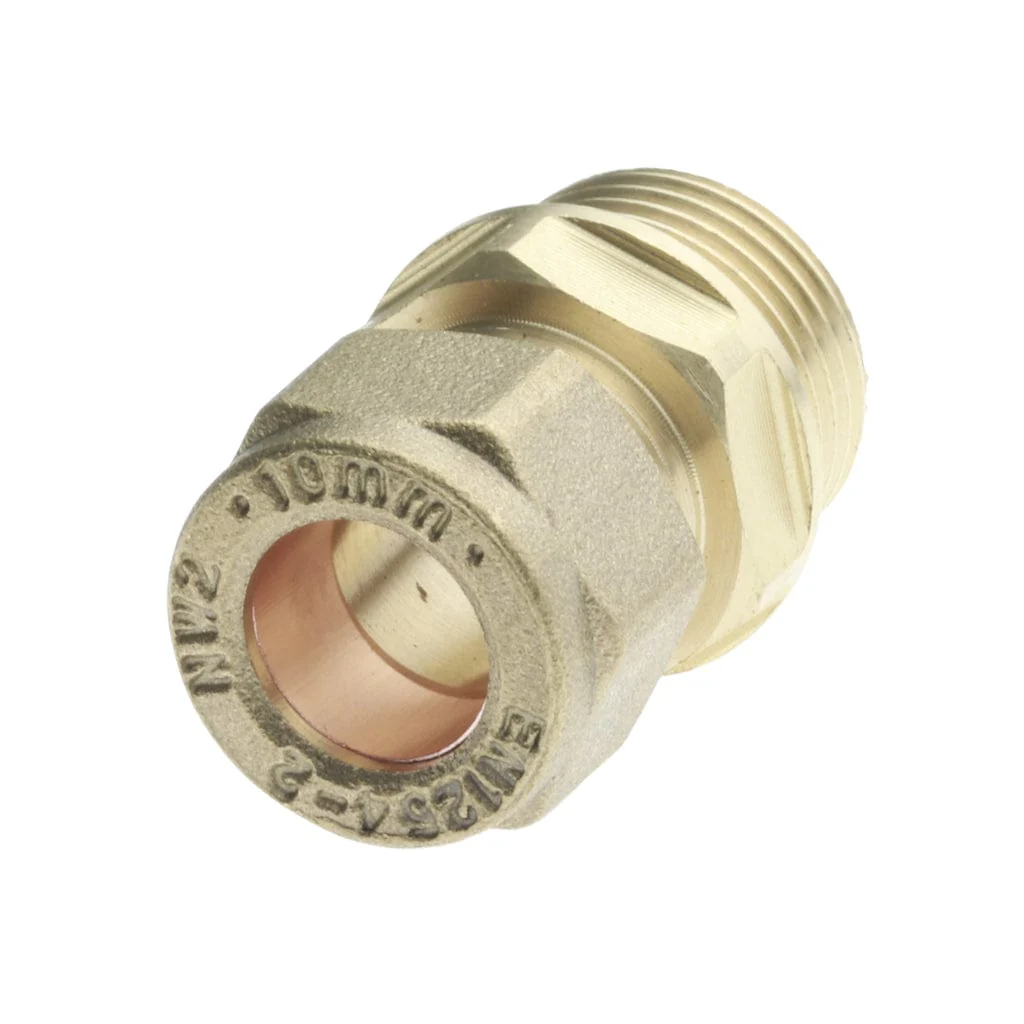

🔩 1/2" Male x 10mm Compression Fitting
- Material: Brass
- Size: 10mm x 1/2" Male
- WRAS approved
- Pre-loaded olive in compression nut
- Ideal for hot & cold water or gas systems

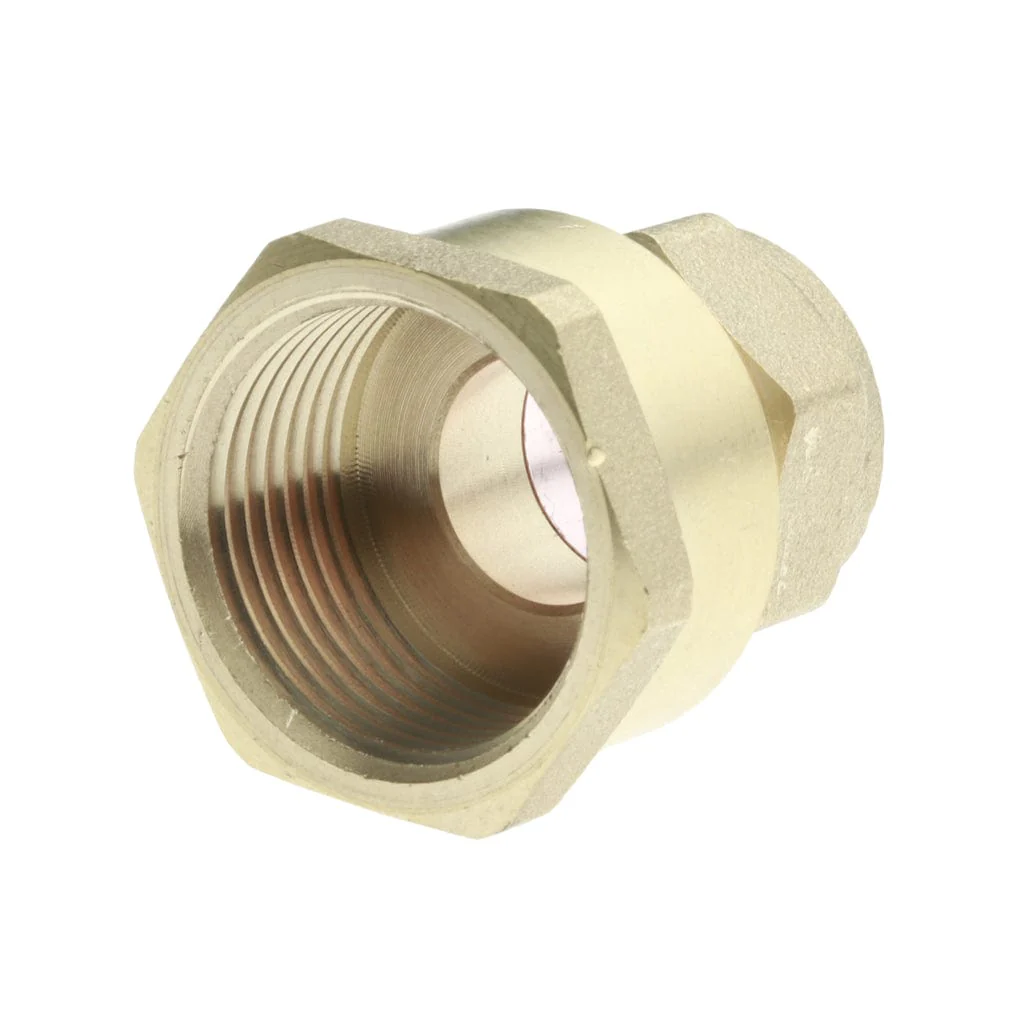

🔩 1/2" Female x 10mm Compression Fitting
- Material: Brass
- Size: 10mm x 1/2" Female
- WRAS approved
- Supplied with pre-loaded olive
- Suitable for both water and gas installations

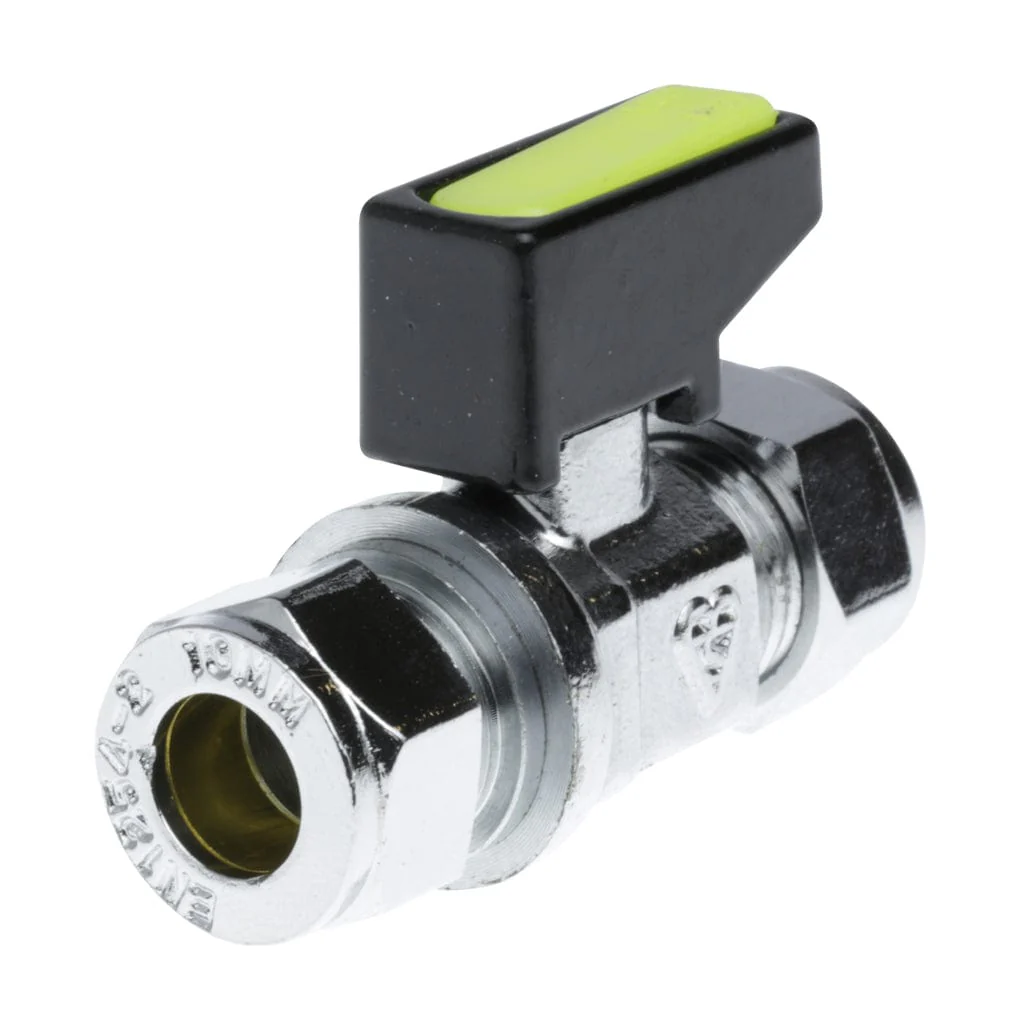

🟡 10mm Mini Ball Valve (Straight)
- Material: Chrome-plated brass
- Size: 10mm x 10mm
- Lever: Black and yellow PVC
- Pre-loaded olive in compression nut
- GAS approved | Warranty: 1 year
- Suitable for all gas systems

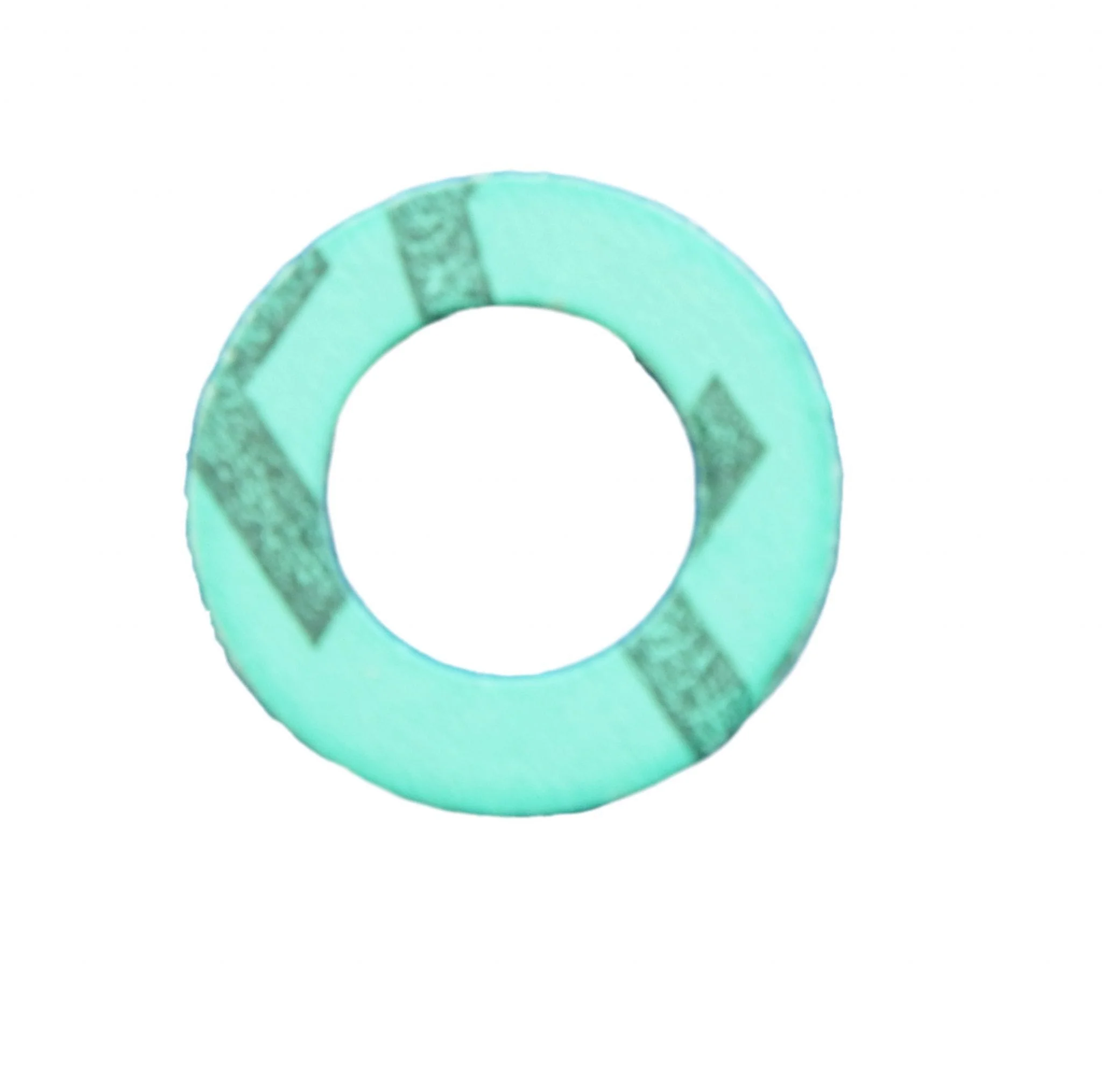

🟢 Green Fibre Washers (4 pcs)
- Material: CNAF (Compressed Non-Asbestos Fibre)
- Thickness: 1.5mm
- External Diameter: 18mm
- Internal Diameter: 12mm
- Provides leak-proof sealing for gas joints
⚠️ Important: Always use appropriate sealing materials (PTFE tape, paste, or liquid) when installing gas fittings. These are not included in the kit.
This kit is ideal for both professional installers and confident DIYers. All fittings are based on 1/2" BSP thread size (not physical measurement). Make your gas hob installation safe, simple, and secure.
Original: $31.75
-70%$31.75
$9.53
Description
🔥 Gas Hob Installation Kit (10mm)
This complete gas fitting kit is designed to help you connect your new gas hob or cooktop safely and easily. It includes all the essential compression and elbow fittings, plus fibre washers for a secure, leak-free installation. The only item you'll need separately is 10mm copper pipe from your local hardware store.
- 🧩 1 x 1/2" Male to 1/2" Male Elbow
- 🧩 1 x 1/2" Female to 1/2" Male Elbow
- 🧩 1 x 1/2" Female x 10mm Compression Fitting
- 🧩 1 x 1/2" Male x 10mm Compression Fitting
- 🧩 1 x 10mm Mini Ball Valve (Straight)
- 🧩 4 x Green Fibre Washers
📦 Component Details
🔩 1/2" Male x 1/2" Male Elbow
- Size: 1/2" BSP Male x 1/2" Male
- Dimensions: 45 x 33mm (1.77" x 1.3")
- 90° angle – ideal for tight installations
- Material: Durable metal
- Sealing required: PTFE tape, liquid or paste (not included)
🔩 1/2" Female x 1/2" Male Elbow
- Size: 1/2" BSP Female x 1/2" BSP Male
- Dimensions: 45 x 33mm (1.77" x 1.3")
- 90° elbow – perfect for connecting pipes at an angle
- Material: Durable metal
🔩 1/2" Male x 10mm Compression Fitting
- Material: Brass
- Size: 10mm x 1/2" Male
- WRAS approved
- Pre-loaded olive in compression nut
- Ideal for hot & cold water or gas systems
🔩 1/2" Female x 10mm Compression Fitting
- Material: Brass
- Size: 10mm x 1/2" Female
- WRAS approved
- Supplied with pre-loaded olive
- Suitable for both water and gas installations
🟡 10mm Mini Ball Valve (Straight)
- Material: Chrome-plated brass
- Size: 10mm x 10mm
- Lever: Black and yellow PVC
- Pre-loaded olive in compression nut
- GAS approved | Warranty: 1 year
- Suitable for all gas systems
🟢 Green Fibre Washers (4 pcs)
- Material: CNAF (Compressed Non-Asbestos Fibre)
- Thickness: 1.5mm
- External Diameter: 18mm
- Internal Diameter: 12mm
- Provides leak-proof sealing for gas joints
⚠️ Important: Always use appropriate sealing materials (PTFE tape, paste, or liquid) when installing gas fittings. These are not included in the kit.
This kit is ideal for both professional installers and confident DIYers. All fittings are based on 1/2" BSP thread size (not physical measurement). Make your gas hob installation safe, simple, and secure.
