7 x UNIVERSAL JETS INJECTORS LPG PROPANE GAS BURNERS-THREAD M6 x 0.75

7 x UNIVERSAL GAS JETS INJECTORS LPG PROPANE GAS BURNERS-THREAD M6 x 0.75

LPG GAS INJECTOR JET CONVERSION KIT FOR OVEN BURNERS & HOBS

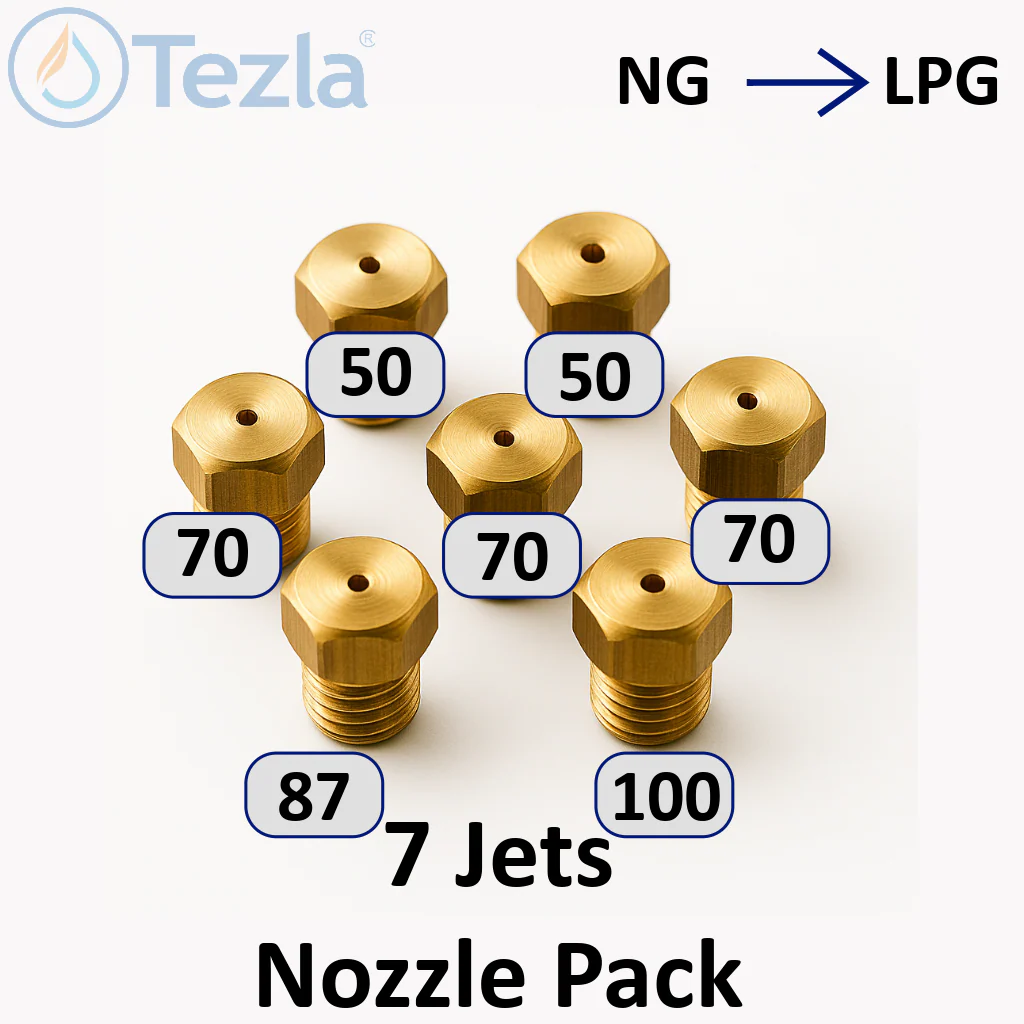

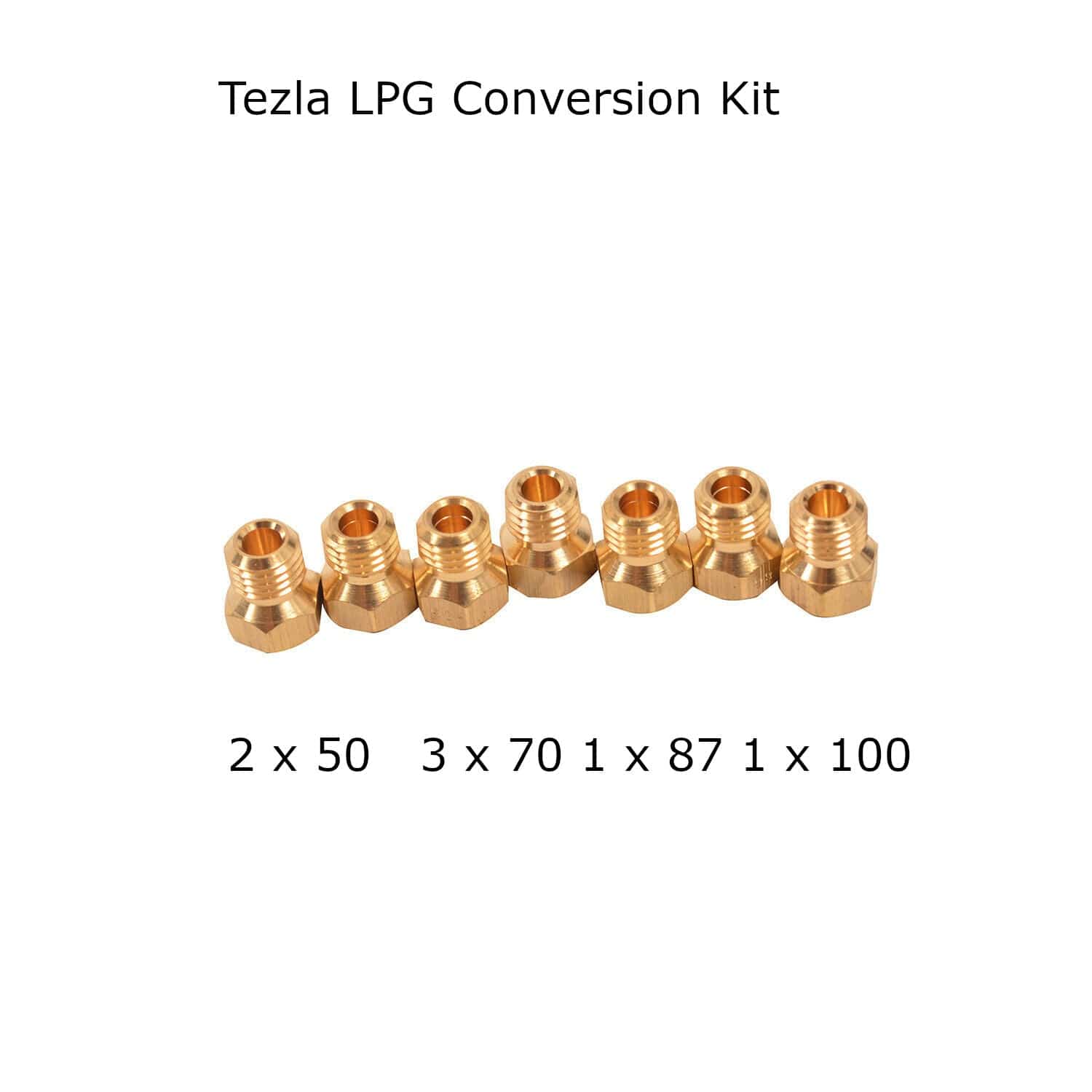

This fixed price listing is for

2 x 0.50 Suitable for a 1 Kw Burner

3 x 0.70 Suitable for a 2 Kw Burner

1 x 0.87 Suitable for a 3 Kw Burner

1 x 1.00 Suitable for a 4 Kw Burner



Universal part suitable for various makes and models of domestic and commercial gas cooking appliances.

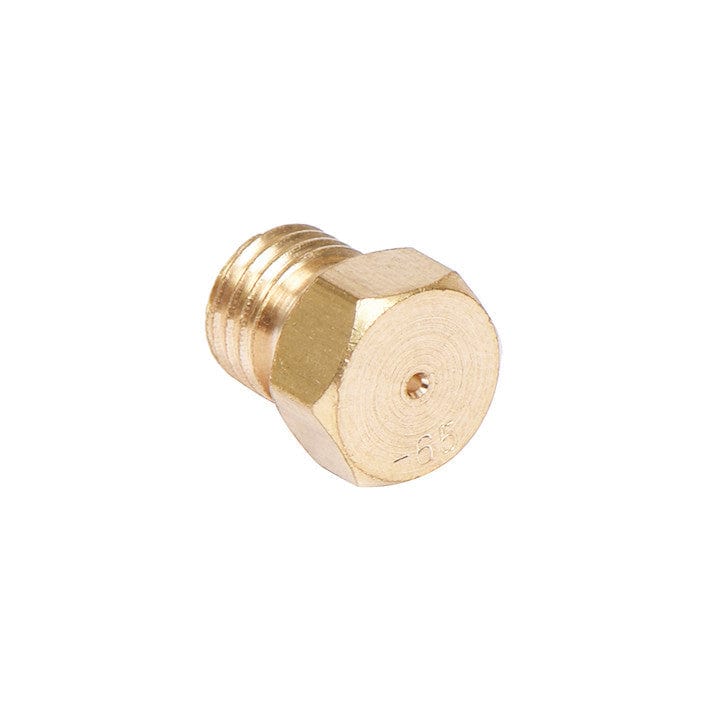

This listing is for a set of 7 jets. The jets all have the same thread size and dimensions but have differing bore diameters.

Thread size: M6 x 0.75
Total Height: 9mm
Head Only Height: 4.5mm
Thread Length: 4.5mm
Spanner Size: 7mm
Gas Type: LPG
